植物工厂条件下不同光通量密度对水稻生长发育的影响

doi:10.3969/j.issn.1006-8082.2025.03.005

摘要/Abstract

摘要：

采用盆栽试验，以湘早籼45号为试验材料，在16 h光照、8 h暗期循环条件下，设置4种光强处理[L1=300 μmol/（m²·s）、L2=450 μmol/（m²·s）、L3=600 μmol/（m²·s）、L4=750 μmol/（m²·s）]，研究在不同光通量密度下水稻的株高、分蘖数、叶绿素含量、光合特性、荧光参数及干物质量的变化规律。结果表明，低光通量密度处理（L1、L2）使水稻株高、分蘖数、叶绿素相对含量（SPAD值）、潜在光化学效率（Fv/F₀）、最大光化学效率（Fv/Fm ）和非光化学猝灭（NPQ）增加，使干物质量、根冠比、净光合速率（Pn）和实际光化学效率（ФPSⅡ）下降；过高的光通量密度处理（L4）使水稻的SPAD 值、Fv/F₀、Fv /Fm 、ФPSⅡ和Pn等参数下降，使 NPQ升高；在适宜的光通量密度（L3）条件下，水稻具有较为合适的形态特征，且具有较高的光合速率及干物质量。可见，光通量密度过低或过高都会对水稻造成不同程度的伤害，最终导致减产，故水稻在室内栽培的时候适宜的光通量密度为600 μmol/（m²·s）。

关键词: 水稻, 植物工厂, 光通量密度, 生长发育, 光合特性

Abstract:

A pot experiment was conducted using rice cultivar Xiangzaoxian 45 as the test material. Under a 16 h light/8 h dark photoperiod cycle, four light intensity treatments were set: [L1=300 μmol/(m²·s), L2=450 μmol/(m²·s), L3=600 μmol/(m²·s), L4=750 μmol/(m²·s)]. The study investigated the changes in plant height, tiller number, chlorophyll content, photosynthetic characteristics, fluorescence parameters, and dry matter accumulation of rice under different light flux densities (PPFD) conditions. The results showed that low light flux density treatment (L1, L2) increased plant height, tiller number, relative chlorophyll content (SPAD value), potential photochemical efficiency (Fv/F₀), maximum photochemical efficiency (Fv/Fm ), and non-photochemical burst (NPQ) of rice, while decreasing dry matter, root-crown ratio, net photosynthetic rate (Pn), and actual photochemical efficiency (ФPSII). However, too high light flux density treatment (L4) led to a decrease in parameters such as SPAD value, Fv/F₀, Fv/Fm, Φ PSII, and Pn in rice, while increasing NPQ. Under appropriate light flux density conditions(L3), rice had suitable morphological characteristics and higher photosynthetic rate and dry matter weight. It can be seen that too low or too high light flux density will cause different degrees of damage to rice, ultimately lead to a reduction in rice yields. Therefore, the appropriate light flux density for indoor cultivation of rice is 600 μmol/(m²·s).

Key words: rice, plant factory, light flux density, growth and development, photosynthetic characteristics

中图分类号:

S511.048

陈龙, 高志强, 金宇豪. 植物工厂条件下不同光通量密度对水稻生长发育的影响[J]. 中国稻米, 2025, 31(3): 30-36.

CHEN Long, GAO Zhiqiang, JIN Yuhao. Effects of Different Light Flux Densities on Rice Growth and Development under Plant Factory Conditions[J]. China Rice, 2025, 31(3): 30-36.

图/表 6

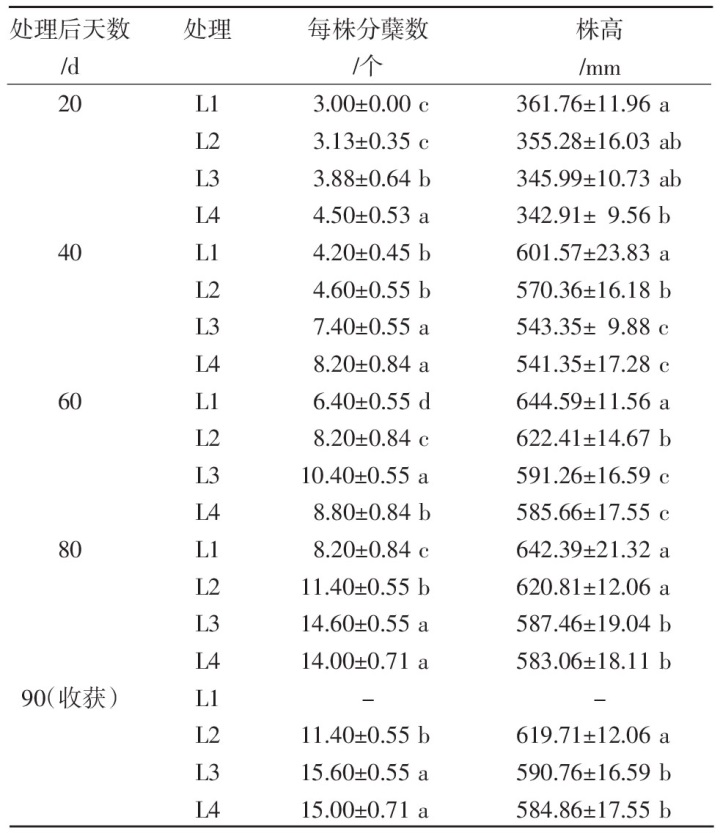

表1 不同光通量密度对分蘖数和株高的影响

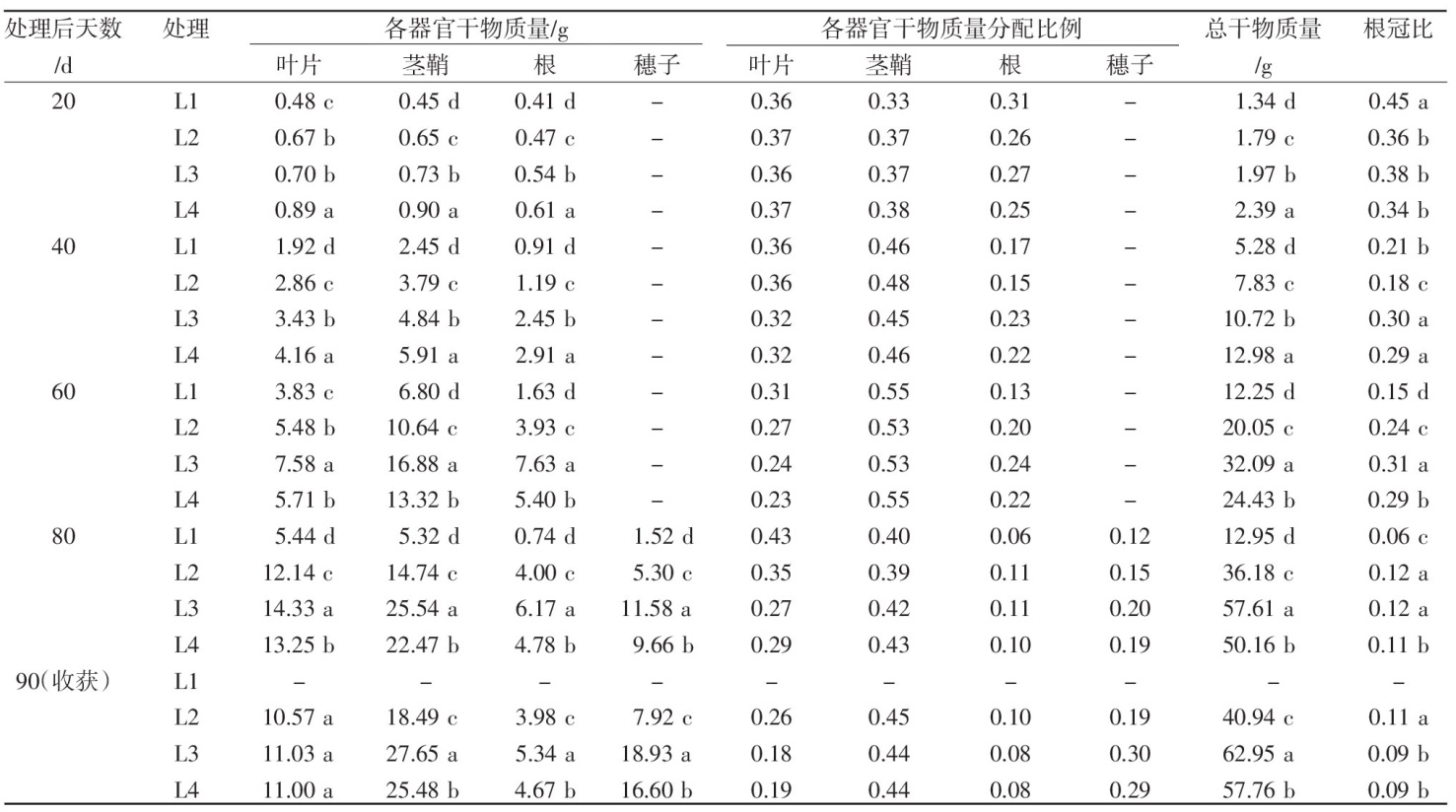

表2 不同光通量密度对干物质量和根冠比的影响

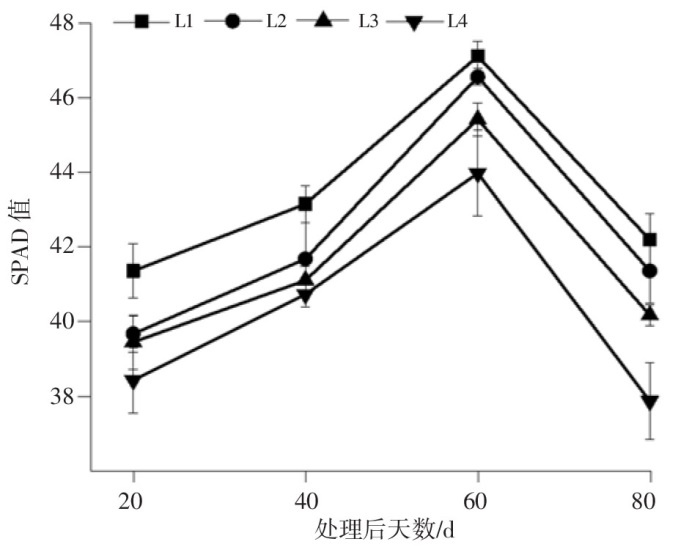

图 1 不同光通量密度对SPAD值的影响

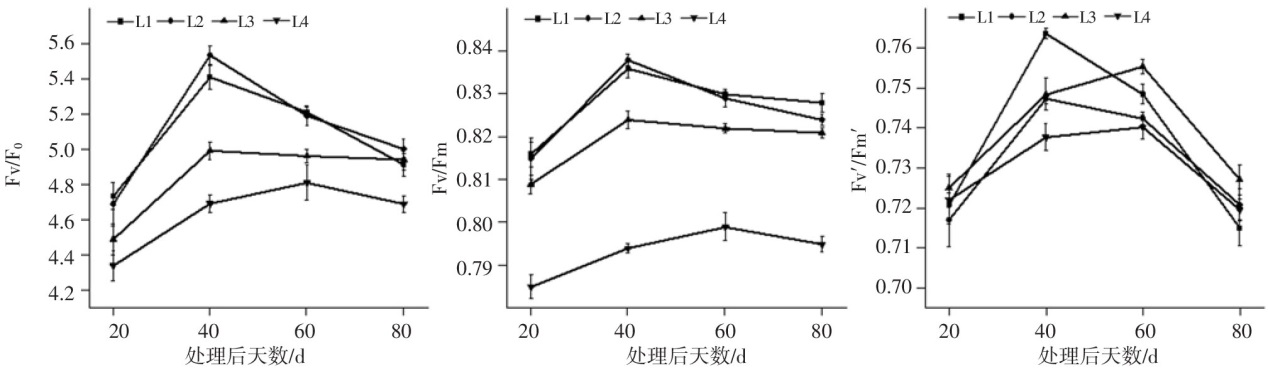

图 2 不同光通量密度对Fv/F0、Fv/Fm、Fv′/Fm′的影响

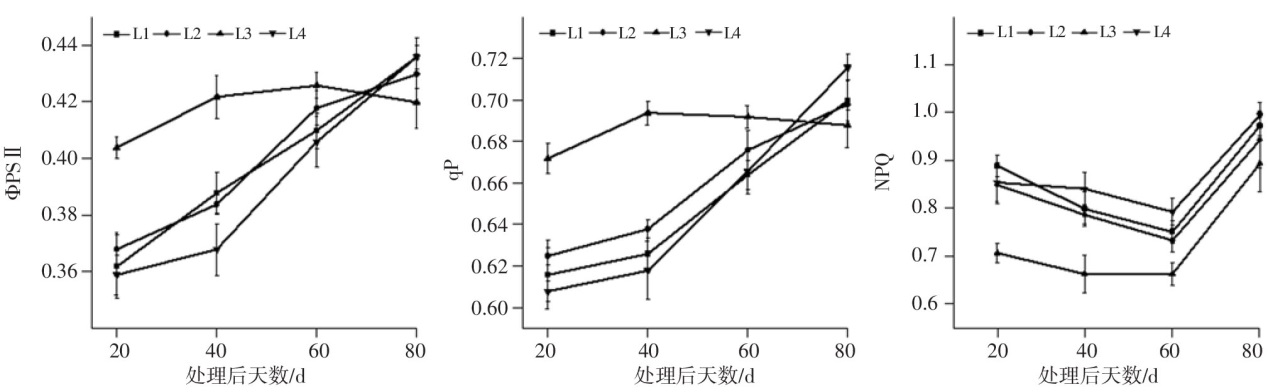

图 3 不同光通量密度对ΦPSⅡ、qP、NPQ的影响

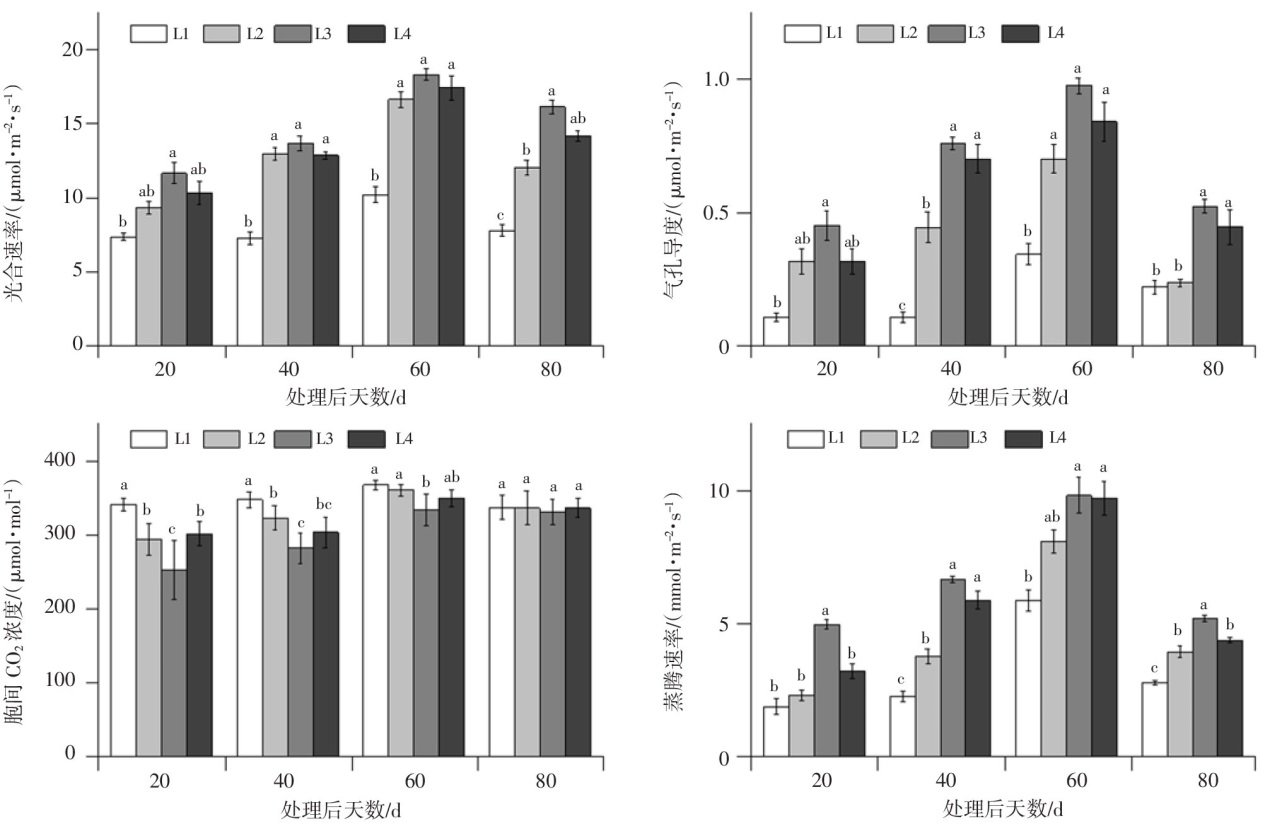

图 4 不同光通量密度对光合特性的影响

参考文献 45

[1]	徐春春, 纪龙, 陈中督, 等. 2023年我国水稻产业形势分析及2024年展望[J]. 中国稻米, 2024, 30(2):1-4.
[2]	李霞, 刘友良, 焦德茂. 不同高产水稻品种叶片的荧光参数的日变化和光适应特性的关系[J]. 作物学报, 2002, 28(2):145-153.
[3]	邓飞, 王丽, 姚雄, 等. 不同生育阶段遮阴对水稻籽粒充实和产量的影响[J]. 四川农业大学学报, 2009, 27(3):265-269.
[4]	ZHANG M, MING Y, WANG H B, et al. Strategies for adaptation to high light in plants[J]. aBIOTECH, 2024, 5: 381-393.
[5]	杜彦修, 季新, 张静, 等. 弱光对水稻生长发育影响研究进展[J]. 中国生态农业学报, 2013, 21(11):1307-1317.
[6]	LIU Q H, WU X, CHEN B C, et al. Effects of low light on agronomic and physiological characteristics of rice including grain yield and quality[J]. Rice Science, 2014, 21(5): 243-251.
[7]	方笑堃, 陈志炜, 程兆康, 等. 太阳辐射减弱对水稻光合生理特性和中微量元素积累的影响[J]. 应用生态学报, 2021, 32(4):1345-1351.
[8]	THANGARAJ M, SIVASUBRAMANIAN V. Effect of low light intensity on growth and productivity of irrigated rice (Oryza sativa L.) grown in Cauvery delta region.[J]. Madras Agricultural Journal, 1990, 77: 220-224.
[9]	易现峰, 杨月琴. 强光下植物的光保护机制[J]. 河南科技大学学报(自然科学版), 2005, 26(6):78-81+1.
[10]	OGREN E, ROSENQVIST E. On the significance of photoinhibition of photosynthesis in the field and its generality among species[J]. Photosynthesis Research, 1992, 33: 63-71.
[11]	夏士健, 吕川根. 水稻叶片光氧化研究进展[J]. 杂交水稻, 2012, 27(5):1-8.
[12]	CICEKLI M, BARLAS N T. Transformation of today greenhouses into high-technology vertical farming systems for metropolitan regions[J]. Journal of Environmental Protection and Ecology, 2014, 15(3): 1066-1073.
[13]	LI Y N, LIU N, JI F, et al. Optimal red: Blue ratio of full spectrum LEDs for hydroponic pakchoi cultivation in plant factory[J]. International Journal of Agricultural and Biological Engineering, 2022, 15(3): 72-77.
[14]	高义卓, 向镜, 叶天承, 等. 不同光质配比的LED光源补光对水稻机插秧苗生长发育的影响[J]. 中国稻米, 2024, 30(1):58-62.
[15]	刘文科, 刘家源. 光质交替对LED红蓝光连续光照生菜生理伤害的削减作用机制[J]. 中国农业大学学报, 2024, 29(10):131-138.
[16]	张谨薇, 孟清波, 马万成, 等. LED光源对辣椒幼苗生长和光合特性的影响[J]. 中国瓜菜, 2021, 34(6):60-63.
[17]	张瑞洁, 贺忠群, 刘雨杭, 等. 植物工厂中光强对番杏生长发育及品质的影响[J]. 西北农业学报, 2022, 31(7):886-892.
[18]	王学春, 赵祥, 赵长坤, 等. 四川常用杂交水稻对弱光胁迫的响应差异及其评价体系构建[J]. 云南大学学报(自然科学版), 2021, 43(2):386-394.
[19]	蔡沁, 丛舒敏, 余恩唯, 等. 灌浆期低温弱光对水稻产量和品质的影响[J]. 中国稻米, 2023, 29(5):45-50.
[20]	李晓娟, 梁开明, 钟旭华, 等. 拔节期光强对水稻抗倒伏能力的影响及机理[J]. 华南农业大学学报, 2017, 38(6):34-43.
[21]	杨兴有, 叶协锋, 刘国顺, 等. 光强对烟草幼苗形态和生理指标的影响[J]. 应用生态学报, 2007, 18(11):2642-2645.
[22]	杨东, 段留生, 谢华安, 等. 不同生育期弱光对超级稻Ⅱ优航2号产量及品质的影响[J]. 福建农业学报, 2013, 28(2):107-112.
[23]	余恩唯, 蔡沁, 徐益, 等. 分蘖期弱光胁迫对水稻产量和品质的影响及其氮肥调控效应[J]. 作物研究, 2023, 37(5):443-447.
[24]	刘奇华, 周学标, 杨连群, 等. 生育前期遮光对水稻灌浆期剑叶生理特性及籽粒生长的影响[J]. 应用生态学报, 2009, 20(9):2135-2141.
[25]	王亚江, 颜希亭, 孟天瑶, 等. 抽穗前后遮光对超级粳稻产量形成的影响[J]. 中国稻米, 2014, 20(5):18-21.
[26]	YAMORI W, EVANS J R, CAEMMERER S V. Effects of growth and measurement light intensities on temperature dependence of CO₂assimilation rate in tobacco leaves[J]. Plant, Cell and Environment, 2010, 33(3): 332-343.
[27]	任万军, 杨文钰, 徐精文, 等. 始穗后弱光对不同基因型水稻叶片特性的影响[J]. 四川农业大学学报, 2002, 20(3):205-208.
[28]	DAI Y J, SHEN Z G, LIU Y, et al. Effects of shade treatments on the photosynthetic capacity, chlorophyll fluorescence, and chlorophyll content of Tetrastigma hemsleyanum Diels et Gilg[J]. Environmental and Experimental Botany, 2009, 65(2-3): 177-182.
[29]	YOSHIOKA-NISHIMURA M. Close relationships between the PSII repair cycle and thylakoid membrane dynamics[J]. Plant and Cell Physiology, 2016, 57(6): 1115-1122.
[30]	BURNEY J, RAMANATHAN V. Recent climate and air pollution impacts on Indian agriculture[J]. Proceedings of the National Academy of Sciences of the United States of America, 2014, 111(46): 16319.
[31]	余海云, 石元值, 马立锋, 等. 茶树树冠不同冠层叶片光合作用特性的研究[J]. 茶叶科学, 2013, 33(6):505-511.
[32]	李霞, 严建民, 季本华, 等. 光氧化和遮荫条件下水稻的光合生理特性的品种差异[J]. 作物学报, 1999, 25(3):301-308.
[33]	WANG Y, WANG Y Z, TANG Y H, et al. Stomata conductance as a goalkeeper for increased photosynthetic efficiency[J]. Current Opinion in Plant Biology, 2022, 70: 102310.
[34]	WU A, HAMMER G L, DOHERTY A, et al. Quantifying impacts of enhancing photosynthesis on crop yield[J]. Nature Plants, 2019, 5: 380-388.
[35]	夏冰, 阳树英, 刘清波. 生态因子对水稻叶片光合生理功能的影响综述[J]. 作物研究, 2008, 22(2):140-142.
[36]	TANG S, ZHANG H X, LI L, et al. Exogenous spermidine enhances the photosynthetic and antioxidant capacity of rice under heat stress during early grain-filling period[J]. Functional Plant Biology, 2018, 45(9): 911-921.
[37]	QIU Z N, HE L, CHEN D D, et al. Short-term stress from high light and high temperature triggers transcriptomic changes in the local lesions 1 rice mutant[J]. Plant Signaling and Behavior, 2019, 14(10): e1649568.
[38]	DEMMIG B, BJORKMAN O. Comparison of the effect of excessive light on chlorophyll fluorescence (77K) and photon yield of O2 evolution in leaves of higher plants[J]. Planta, 1987, 171: 171-184.
[39]	SCHREIBER U, BILGER W. Progress in chlorophyll fluorescence research: Major developments during the past years in retrospect[J]. Progress in Botany/Fortschritte der Botanik: Structural Botany Physiology Genetics Taxonomy Geobotany/Struktur Physiologie Genetik Systematik Geobotanik, 1993: 151-173.
[40]	LACOUR T, BABIN M, LAVAUD J. Diversity in xanthophyll cycle pigments content and related nonphotochemical quenching (NPQ) among microalgae: Implications for growth strategy and ecology[J]. Journal of Phycology, 2020, 56(2): 245-263.
[41]	李汶珊, 曾发梁, 王雪莹, 等. 分蘖期遮光对水稻气体交换和叶绿素荧光参数的影响[J]. 西南农业学报, 2018, 31(2):289-295.
[42]	朱晓乔, 杨暮英, 杨云秀, 等. 矮秆水稻在间栽荫蔽环境中的光合响应分析[J/OL]. 分子植物育种.
[43]	牟会荣, 姜东, 戴廷波, 等. 遮荫对小麦旗叶光合及叶绿素荧光特性的影响[J]. 中国农业科学, 2008, 41(2):599-606.
[44]	王丽, 邓飞, 郑军, 等. 水稻根系生长对弱光胁迫的响应[J]. 浙江大学学报(农业与生命科学版), 2012, 38(6):700-708.
[45]	TAKAI T, MATSUURA S, NISHIO T, et al. Rice yield potential is closely related to crop growth rate during late reproductive period[J]. Field Crops Research, 2006, 96(2-3): 328-335.
