生物炭与氮肥施用对双季稻田温室气体排放的影响

doi:10.3969/j.issn.1006-8082.2021.01.005

摘要/Abstract

摘要：

以我国南方双季稻田为研究对象,旨在探究生物炭与氮肥施用对稻田温室气体排放的影响。试验共设置5个处理,分别为不施氮肥不施生物炭（N0B0）、单施40 t/hm²生物炭（N0B2）、单施氮肥（N1B0）、氮肥配施20 t/hm²生物炭（N1B1）、氮肥配施40 t/hm²生物炭（N1B2）。采用静态暗箱-气象色谱法连续监测稻田CH₄与N₂O排放情况,分析生物炭施用对稻田CH₄与N₂O累积排放量、综合温室效应（GWP）、周年水稻产量、温室气体排放强度（GHGI）的影响。结果表明,在施氮或不施氮条件下,施用生物炭均显著降低稻田CH₄排放量,显著增加N₂O累积排放量。与N1B0处理相比,N1B1与N1B2处理CH₄累积排放量分别下降32.43%和41.0%,N₂O累积排放量分别增加109.93%和106.54%。各处理综合温室效应由大到小依次为N1B0> N0B0> N0B2> N1B1> N1B2。晚稻收获后,土壤pH值、总炭与C/N随生物炭施用量增加呈递增趋势,且N1B2处理较N1B0处理显著增加。综上所述,与单施氮肥和单施生物炭相比,生物炭与氮肥配施更有利于南方双季稻田固碳减排,其中,氮肥配施40 t/hm²生物炭处理效果最佳。本研究为生物炭运用于缓解稻田温室效应提供了参考。

关键词: 生物炭, 氮肥, 双季稻, 温室气体

Abstract:

To investigate the effects of nitrogen （N） and biochar amendment on greenhouse gas emissions in double rice-cropping system. Five treatments were conducted: N0B0, no N fertilization without biochar amendment; N0B2, no N fertilization with 40 t/hm² biochar; N1B0, N fertilization without biochar amendment; N1B1, N fertilization with 20 t/hm² biochar; N1B2, N fertilization with 40 t/hm² biochar. Methane （CH₄） and nitrous oxide （N₂O） emissions were measured using the static chamber-gas chromatography method during rice-growing seasons, and analyzed the effects of biochar and nitrogen fertilizer amendment on CH₄ and N₂O emissions, global warming potential, annual yield and greenhouse gas intensity. The results indicated that biochar amendment significantly decreased CH₄ emission in treatments with or without N fertilizer. Compared with N1B0 treatment, CH₄ emissions of N1B1 and N1B2 treatments were decreased by 32.43% and 41.1%, respectively. Biochar amendment significantly increased the cumulative N₂O emissions under nitrogen application. Compared with N1B0 treatment, the cumulative emissions of N1B1 and N1B2 treatments were significantly increased by 109.93% and 106.54%, respectively. The global warming potential of each treatment can be ordered as: N1B0> N0B0> N0B2> N1B1> N1B2. After the late rice harvested, the soil pH value, total carbon and C/N showed an increasing trend with the increase of biochar application, and N1B2 treatment increased significantly compared to N1B0. In summary, compared with single application of nitrogen fertilizer and single application of biochar, combined application of biochar and nitrogen fertilizer is more conducive to carbon sequestration and emission reduction in the double-season paddy field in southern China. N1B2 treatment has the best effect among all the treatments. The study provided some references for mitigating greenhouse effect by incorporating biochar into paddy fields.

Key words: biochar, N fertilizer, double-season rice, greenhouse gas emission

中图分类号:

S511.062

汪勇, 吕茹洁, 黎星, 胡水秀, 商庆银. 生物炭与氮肥施用对双季稻田温室气体排放的影响[J]. 中国稻米, 2021, 27(1): 20-26.

Yong WANG, Rujie LÜ, Xing LI, Shuixiu HU, Qingyin SHANG. Effects of Biochar and Nitrogen Incorporation on Greenhouse Gas Emissions in Double Rice-cropping System[J]. China Rice, 2021, 27(1): 20-26.

图/表 8

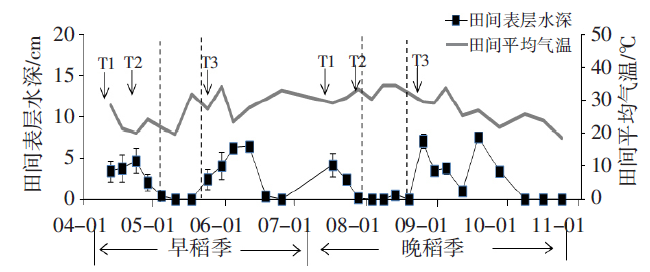

图1 田间表层水深度与田间气温变化

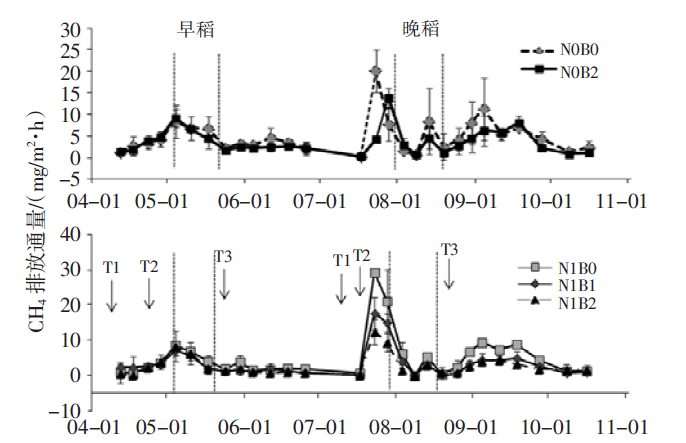

图2 生物炭与氮肥配施对双季稻CH4排放通量的影响

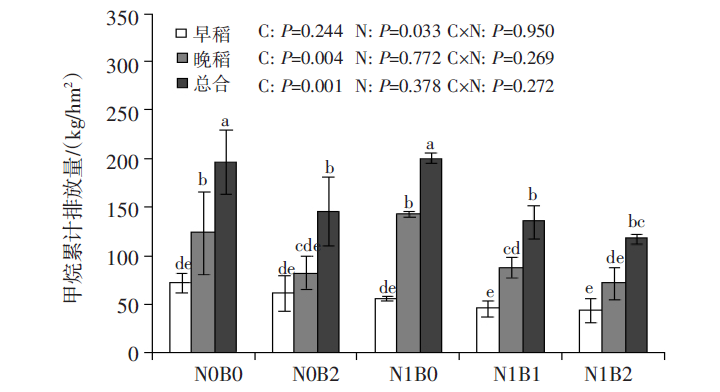

图3 生物炭与氮肥配施对双季稻CH4累积排放总量的影响不同小写字母表示处理间差异显著（P<0.05）。下同。

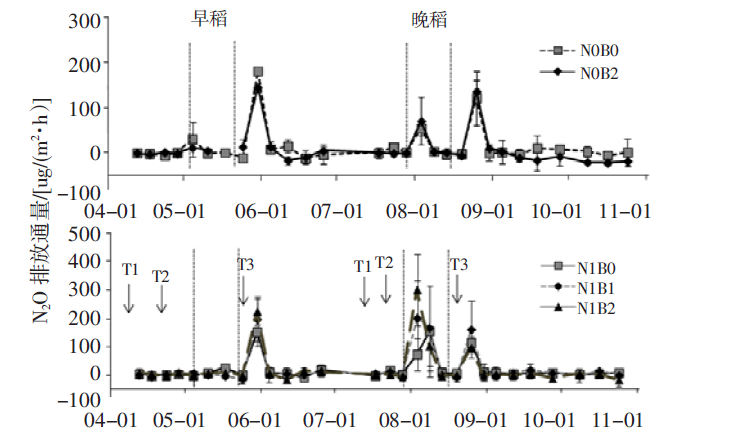

图4 生物炭与氮肥配施对双季稻N2O排放通量的影响

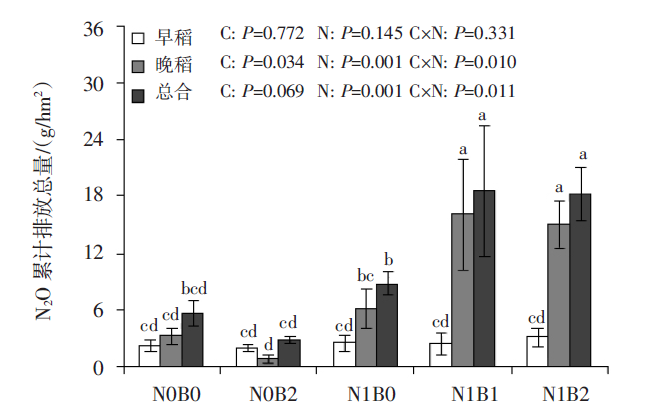

图5 生物炭与氮肥配施对双季稻N2O累积排放总量的影响

表1 双季稻整个生育周期内综合温室效应、周年产量、温室气体强度、CH4贡献率和减排百分比与方差分析（P值）

表2 生物炭与氮肥配施对各处理土壤理化性质的影响

表3 温室气体排放与土壤性状的相关性分析

参考文献 37

[1]	张玉铭,胡春胜,张佳宝,等. 农田土壤主要温室气体(CO2、CH4、N2O)的源/汇强度及其温室效应研究进展[J]. 中国生态农业学报,2011,19(4):966-975.
[2]	WMO. WMO greenhouse gas bulletin: the state of greenhouse gases in the atmosphere based on global observations through 2015[EB]. Geneva: WMO, 2016.
[3]	虞国平. 水稻在我国粮食安全中的战略地位分析[D]. 北京:中国农业科学院,2009.
[4]	李长生,肖向明,FROLKING S,等. 中国农田的温室气体排放[J]. 第四纪研究,2003,23(5):493-503.
[5]	陈槐,周舜,吴宁,等. 湿地甲烷的产生、氧化及排放通量研究进展[J]. 应用与环境生物学报,2006,12(5):726-733.
[6]	段居琦,周广胜. 中国水稻潜在分布及其气候特征[J]. 生态学报,2011,31(22):6 659-6 668.
[7]	徐仁扣,李九玉,周世伟,等. 我国农田土壤酸化调控的科学问题与技术措施[J]. 中国科学院院刊,2018,33(2):160-167.
[8]	WOOLF D, AMONETTE J E, STREET-PERROTT F A, et al. Sustainable biochar to mitigate global climate change[J]. Nature Communications, 2010, 1: 1-9.
[9]	张伟明,孟军,王嘉宇,等. 生物炭对水稻根系形态与生理特性及产量的影响[J]. 作物学报,2013,39(8):1 445-1 451.
[10]	KNOBLAUCH C, MAARIFAT A, PFEIFFER E, et al.Degradability of black carbon and its impact on trace gas fluxes and carbon turnover in paddy soils[J]. Soil Biology and Biochemistry, 2011, 43(9): 1 768-1 778.
[11]	王欣,尹带霞,张凤,等. 生物炭对土壤肥力与环境质量的影响机制与风险解析[J]. 农业工程学报,2015,31(4):248-257.
[12]	SHEN J, TANG H, LIU J, et al.Contrasting effects of straw and straw-derived biochar amendments on greenhouse gas emissions within double rice cropping systems[J]. Agriculture Ecosystems & Environment, 2014, 188: 264-274.
[13]	JEFFERY S, VERHEIJEN F G A, KAMMANN C, et al. Biochar effects on methane emissions from soils: a meta-analysis[J]. Soil Biology and Biochemistry, 2016, 101: 251-258.
[14]	WANG J, PAN X, LIU Y, et al.Effects of biochar amendment in two soils on greenhouse gas emissions and crop production[J]. Plant and Soil, 2012, 360: 287-298.
[15]	ZHANG A, LIU Y, PAN G, et al.Effect of biochar amendment on maize yield and greenhouse gas emissions from a soil organic carbon poor calcareous loamy soil from Central China Plain[J]. Plant and Soil, 2012, 351: 263-275.
[16]	YOO G Y, KIM Y J, LEE Y O, et al.Investigation of greenhouse gas emissions from the soil amended with rice straw biochar[J]. KSCE Journal of Civil Engineering, 2016, 20: 2197-2207.
[17]	李飞跃,汪建飞. 生物炭对土壤N2O排放特征影响的研究进展[J]. 土壤通报,2013,44(4):1 005-1 009.
[18]	吴震,董玉兵,熊正琴. 生物炭施用3年后对稻麦轮作系统CH4和N2O综合温室效应的影响[J]. 应用生态学报,2018,29(1):141-148.
[19]	NELISSEN V, RüTTING T, HUYGENS D, et al. Temporal evolution of biochar's impact on soil nitrogen processes-a 15N tracing study[J]. Global Change Biology Bioenergy, 2015, 7(4): 635-645.
[20]	李露,周自强,潘晓健,等. 不同时期施用生物炭对稻田N2O和CH4排放的影响[J]. 土壤学报,2015,52(4):839-848.
[21]	李露,周自强,潘晓健,等. 氮肥与生物炭施用对稻麦轮作系统甲烷和氧化亚氮排放的影响[J]. 植物营养与肥料学报,2015,21(5):1 095-1 103.
[22]	WANG J, XIONG Z, KUZYAKOV Y.Biochar stability in soil: meta-analysis of decomposition and priming effects[J]. Global Change Biology Bioenergy, 2016, 8: 512-523.
[23]	唐海明,肖小平,汤文光,等. 长期施肥对双季稻田甲烷排放和关键功能微生物的影响[J]. 生态学报,2017,37(22):7 668-7 678.
[24]	许欣,陈晨,熊正琴. 生物炭与氮肥对稻田甲烷产生与氧化菌数量和潜在活性的影响[J]. 土壤学报,2016,53(6):1 517-1 527.
[25]	商庆银,杨秀霞,成臣,等. 秸秆还田条件下不同水分管理对双季稻田综合温室效应的影响[J]. 中国水稻科学,2015,29(2):181-190.
[26]	QIN X, LI Y, WANG H, et al. Long-term effect of biochar application on yield-scaled greenhouse gas emissions in a rice paddy cropping system: a four-year case study in south China[J]. Science of the Total Environment, 2016, 569-570: 1 390-1 401.
[27]	成臣,曾勇军,杨秀霞,等. 不同耕作方式对稻田净增温潜势和温室气体强度的影响[J]. 环境科学学报,2015,35(6):1 887-1 895.
[28]	QUAN Y, JUDITH P, RALF C, et al.Partitioning of CH4 and CO2 production originating from rice straw, soil and root organic carbon in rice microcosms[J]. Plos One, 2012, 7(11): e49073
[29]	傅志强,龙攀,刘依依,等. 水氮组合模式对双季稻甲烷和氧化亚氮排放的影响[J]. 环境科学,2015,36(9):3 365-3 372.
[30]	LIU Q, ZHANG Y, LIU B, et al.How does biochar influence soil N cycle? A meta-analysis[J]. Plant and Soil, 2018, 426: 211-225.
[31]	SUN H, LU H, CHU L, et al.Biochar applied with appropriate rates can reduce N leaching, keep N retention and not increase NH3 volatilization in a coastal saline soil[J]. Science of the Total Environment, 2017, 575: 820-825.
[32]	BIEDERMAN L A, HARPOLE W S.Biochar and its effects on plant productivity and nutrient cycling: a meta-analysis[J]. Global Change Biology Bioenergy, 2013, 5: 202-214.
[33]	YUAN J, XU R, ZHANG H.The forms of alkalis in the biochar produced from crop residues at different temperatures[J]. Bioresource Technology, 2011, 102: 3 488-3 497.
[34]	刘悦,黎子涵,邹博,等. 生物炭影响作物生长及其与化肥混施的增效机制研究进展[J]. 应用生态学报,2017,28(3):1 030-1 038.
[35]	龚伟,颜晓元,王景燕. 长期施肥对土壤肥力的影响[J]. 土壤,2011,43(3):336-342.
[36]	廖萍,眭锋,汤军,等. 施用生物炭对双季稻田综合温室效应和温室气体排放强度的影响[J]. 核农学报,2018,32(9):1 821-1 830.
[37]	祁乐,高明,郭晓敏,等. 生物炭施用量对紫色水稻土温室气体排放的影响[J]. 环境科学,2018,39(5):2 351-2 359.
